Heating, ventilation, and air conditioning (HVAC) systems are essential components in maintaining comfortable indoor environments in both residential and commercial buildings. HVAC systems are responsible for regulating temperature, improving air quality, and ensuring efficient air circulation. Despite their importance, many people are unaware of where HVAC systems are located within their homes or workplaces and how their placement affects their overall performance. Knowing where the various components of an HVAC system are located can help with maintenance, troubleshooting, and overall system efficiency.
The Location of HVAC Systems in Homes
In most residential properties, the HVAC system is typically located in areas that are easily accessible but out of the way to avoid occupying valuable living space. The specific components of the system, including the furnace, air handler, air conditioner, or heat pump, are usually installed in different parts of the home.
Furnace or Heat Pump: The furnace, which is responsible for heating the air, is often found in the basement, garage, or a dedicated utility room. In homes without basements, the furnace may be placed in a crawl space or attic. The location is chosen based on ease of access for maintenance and repairs, as well as proximity to the air ducts that distribute the warm air throughout the home.
Air Handler: The air handler is another essential part of the HVAC system and is usually located near the furnace or heat pump. It’s responsible for circulating the air throughout the home via ductwork. This component can also be found in the basement, attic, or garage, depending on the layout of the house.

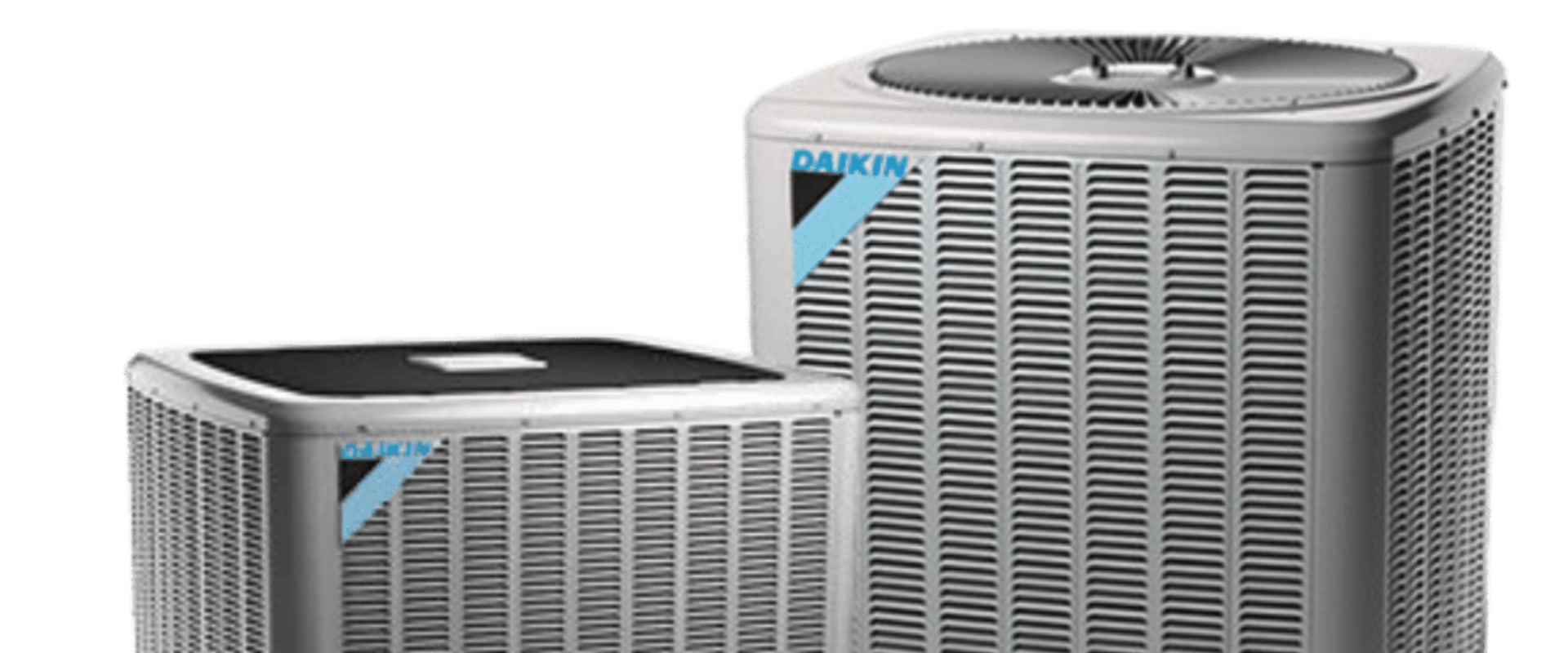

Air Conditioner: The air conditioning unit is typically split between two parts—an indoor component and an outdoor unit. The outdoor condenser unit is located outside the home, usually on a concrete pad next to the house or in a backyard area. The indoor component, often the evaporator coil, is located near the air handler or furnace, usually within the same utility area.
Ductwork: Ducts are a network of tubes that distribute heated or cooled air throughout the home. These ducts are generally hidden in the walls, ceilings, and floors of a house. Most homeowners will have limited visibility of the ductwork, but knowing its general layout can be helpful when troubleshooting airflow problems.
Commercial HVAC System Locations
In commercial buildings, the size and complexity of HVAC systems are much greater, and the location of the equipment can vary significantly depending on the size of the building and its design.
Rooftop Units: In many commercial settings, HVAC systems are housed on the roof. Rooftop units (RTUs) are popular in commercial buildings because they save indoor space and provide easy access for maintenance technicians without disrupting daily operations. RTUs typically contain all the necessary components, such as the air handler, heat exchanger, and compressor, in a single unit. These systems are self-contained and can heat, cool, and ventilate large commercial spaces efficiently.
Mechanical Rooms: For larger commercial spaces like office buildings, schools, or hospitals, HVAC systems may be located in dedicated mechanical rooms. These rooms house the central HVAC equipment, such as boilers, chillers, and large air handlers, and are typically found in the basement or on the lower levels of the building. Mechanical rooms are designed to keep the HVAC systems out of sight while providing easy access for regular maintenance and repairs.
Split Systems: Similar to residential setups, some commercial buildings use split systems, with an outdoor condenser unit and an indoor air handler. These systems are usually placed in utility areas or mechanical closets.
HVAC Systems in Multi-Unit Buildings
In multi-unit residential buildings, such as apartments or condominiums, HVAC systems may be centrally located to serve multiple units or individualized for each unit.
Centralized HVAC Systems: In older apartment complexes or large condominiums, a centralized HVAC system may be used to provide heating and cooling to all units. The central unit is typically located in a mechanical room or on the roof, and the air is distributed through a network of ducts to each apartment.
Individual Units: In modern buildings, each apartment or condo often has its own HVAC system. In these cases, the furnace or heat pump may be located in a closet within the unit, while the air conditioner’s condenser is placed on the roof or outside the building.
HVAC and New Construction
In newly constructed homes and buildings, the placement of HVAC systems is carefully planned to optimize energy efficiency and ease of maintenance. HVAC components are often located in areas that allow for easy access without compromising the aesthetics or functionality of the living space. Builders often consult with HVAC professionals to ensure the system is installed in the best location for airflow and energy savings.
HVAC Service and Maintenance
Wherever your HVAC system is located, regular service and maintenance are essential to keep it running efficiently. By knowing the location of the system’s key components, homeowners and business owners can easily schedule maintenance and make sure all parts of the system are in good working order. Services like those offered by TMK Plumbing & Heating are crucial for routine maintenance, as they ensure that both heating and cooling systems function optimally, no matter where they are installed.
Conclusion
The location of an HVAC system, whether in a residential or commercial building, plays a critical role in its effectiveness and efficiency. Knowing where components like the furnace, air handler, air conditioner, and ductwork are located can help with routine maintenance and ensure that your system operates smoothly. Whether it’s located in a basement, rooftop, or mechanical room, understanding the layout of your HVAC system will allow you to keep it functioning well and extend its lifespan. Regular professional maintenance, is essential for keeping your HVAC system in top condition.
